Voodoo Lab HEX Pedal Switcher with 6 True Bypass Audio Loops

HEX Pedal Switcher with 6 True Bypass Audio Loops controls signal routing in a compatible guitar or amplifier rig.

Specifications

• Model / SKU: HEX
• Manufacturer specification: 1/4” mono loop inputs (2): For loops 1 and 2 only
• Manufacturer specification: 1/4” mono switchable audio loops (6 send/returns)
• Manufacturer specification: 1/4” mono main audio out (1)
• Manufacturer specification: MIDI In: Accepts MIDI commands and provides phantom power
• Manufacturer specification: MIDI Out: Passes MIDI commands to other MIDI devices

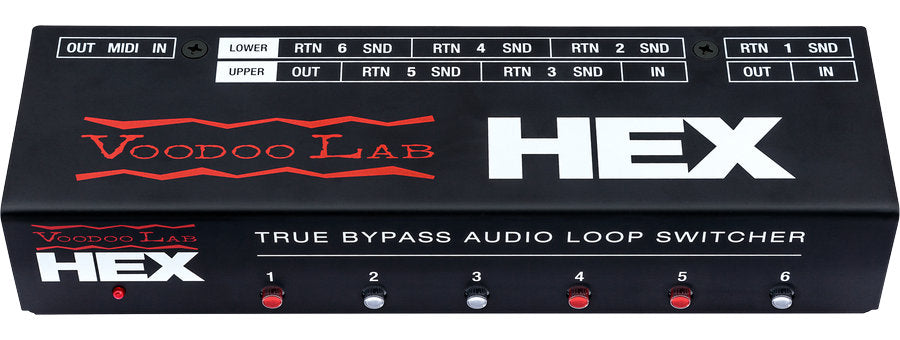

• Manufacturer specification: LED function buttons (6): Switches functions on/off, saves programs
• Manufacturer specification: 5.5mm x 2.1mm barrel connector, center negative polarity
• Manufacturer specification: Dimensions: 8.5" x 2.9" x 1.75" (216 x 74 x 44 mm)
