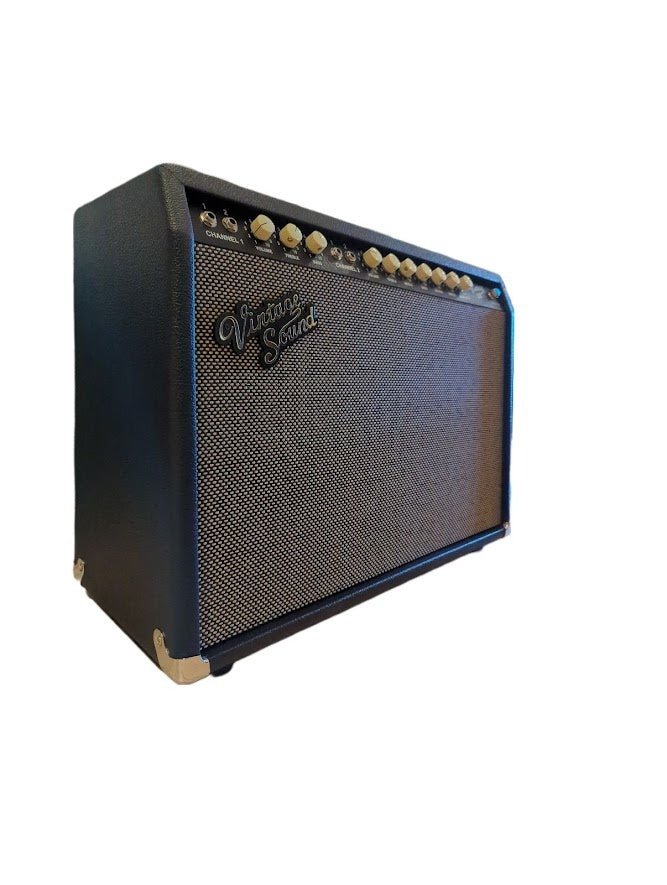

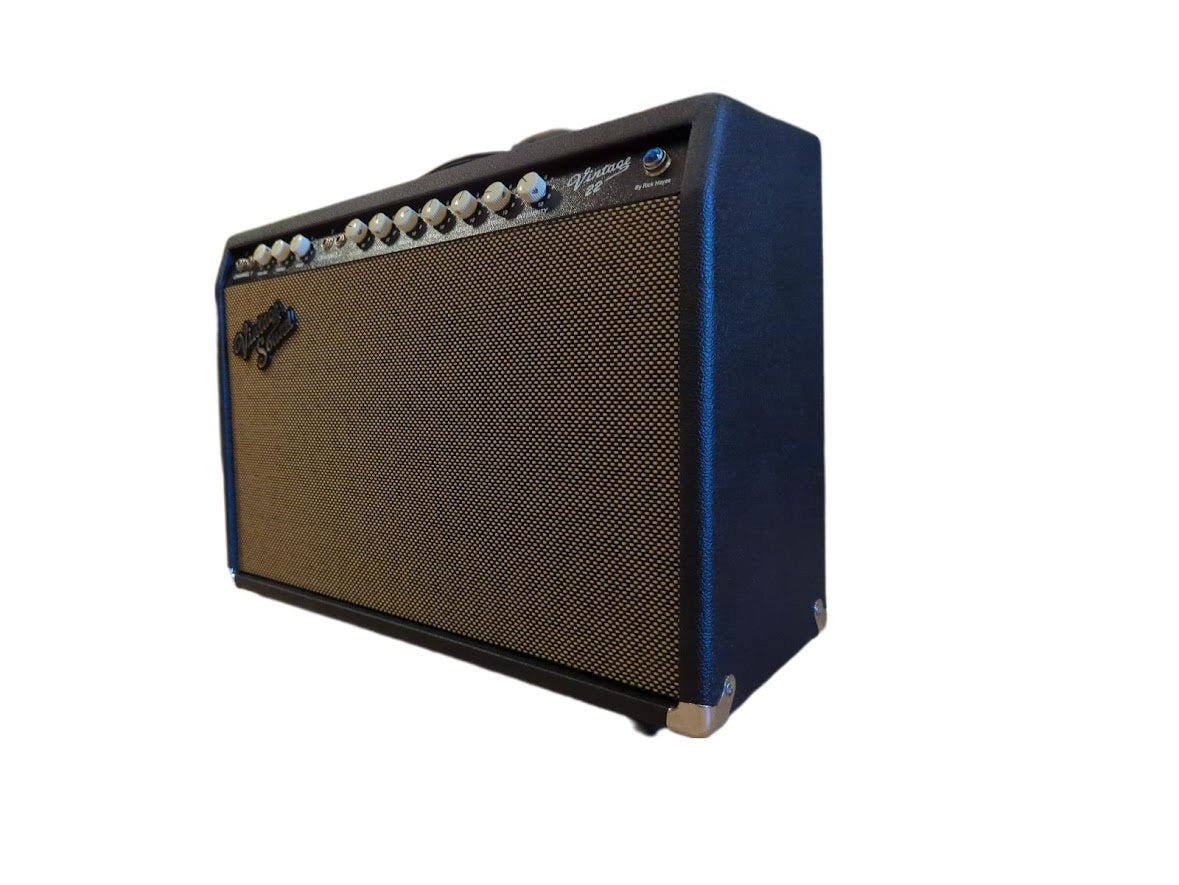

Vintage Sound Amps - Vintage 22 (22w Black Face AB763)

Model:  Vintage 22
Amplifier Type: Tube

Specifications:
Circuitry: Black Face AB763
Power Handling: 22 Watts into 8 Ohms
Inputs: 2 channels; 4 Inputs (2 per channel)
Auxiliary Inputs:
Bias Points
RCA Foot switch Jack
Extension Speaker Jack
External Speaker Jack
Controls:
Channel #1 :  Volume, Treble, Bass
Channel #2:   Volume, Treble, Middle, Bass, Reverb, Speed, Intensity

Hardware:
Cabinet Material:   Solid Pine Cabinet w/ Birch Plywood Baffle & upper and lower back panel
Pilot Light Jewel:   Blue (other colors available)
Knobs: Cream Barrel Head Knobs
Handle: Leather Handle

Effects:
Tube Driven Spring Reverb
Tube Vibrato

Speakers:
*WGS G-12c/s

Tubes:
Rectifier: 5AR4 Rectifier Tube
Power Tubes:     (2)  6V6 -or- (2) 6L6
Preamp Tubes:  (4)  12AX7, (2) 12AT7

Optional Accessories:
2-Button Foot switch
Custom Padded Cover

Optional Modification(s):
Re-voice Channel 1:
Brown Face/Black Face with added reverb & vibrato
Mild High Gain/Compression with added reverb & vibrato

Dimensions:
Amplifier Depth:     9 ½ “
Amplifier Width:     24 ½”
Amplifier Height:    17 ½ ”
Amplifier Weight:   45 lbs.

Head Dimensions:
Amplifier Depth: 9 1/2″
Amplifier Width: 24 1/2″
Amplifier Height: 9 1/2″
Amplifier Weight: 25 lbs.
