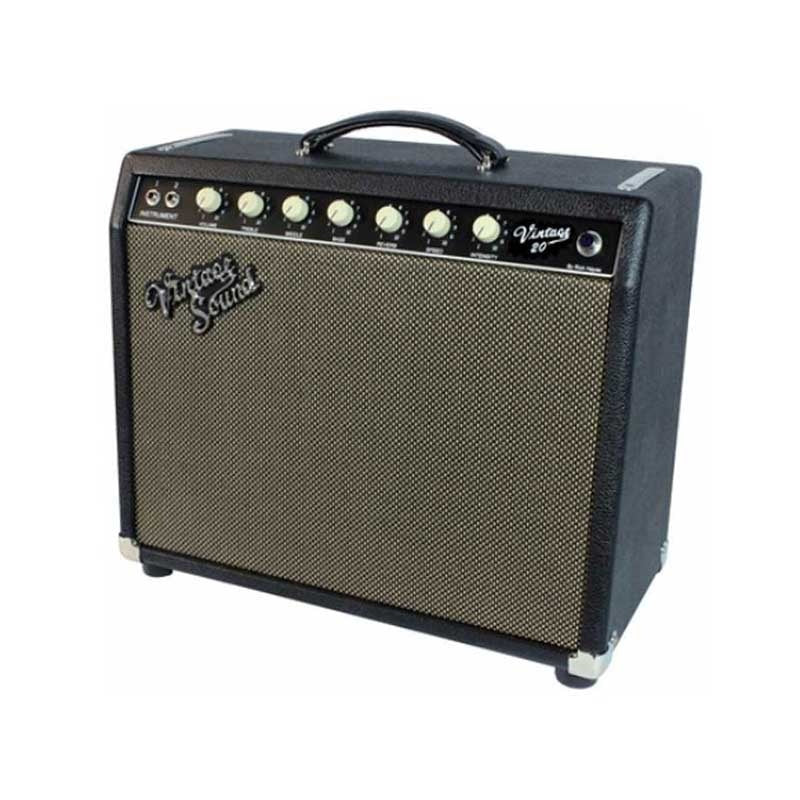

Vintage Sound Amps - Vintage 20 (20 watt AA1164 circuitry) Black

Series: Vintage Series

Model:  Vintage 20
Amplifier Type: Tube

Specifications:
Circuitry: Black Face AA1164
Power Handling: 20 Watts into 8 Ohms
Inputs: One channel; 2 Inputs
Auxiliary Inputs:
Bias Points
RCA Footswitch Jack
Extension Speaker Jack
External Speaker Jack
Controls: Volume, Treble, Middle, Bass. Reverb, Speed, Intensity

Hardware:
Cabinet Material:   Solid Pine Cabinet w/ Birch Plywood Baffle & upper and lower back panel
Pilot Light Jewel:   Blue
Knobs: Cream Barrel Head Knobs
Handle: Leather Handle

Effects:
Tube Driven Spring Reverb
Tube Vibrato

Speakers:
*WGS G12C/S

Tubes:
Rectifier: 5AR4 Rectifier Tube
Power Tubes:     (2)  6V6 -or- (2) 6L6
Preamp Tubes:  (3)  12AX7, (1) 12AT7

Optional Accessories:
2-Button Footswitch
Custom Padded Cover

Dimensions:
Amplifier Depth: 9 1/2″
Amplifier Width: 19 7/8″
Amplifier Height: 17″
Amplifier Weight: 38 lbs.
