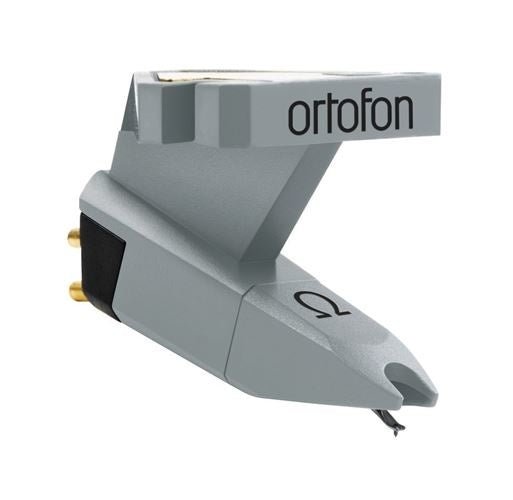

Ortofon - Omega 1e Budget elliptical stylus listening cartridge
Ortofon OMEGA moving magnet cartridge
The Omega is a standard-mount cartridge for true high-fidelity sound reproduction.
It's a perfect match for standard USB turntables, fits a wide range of modern and vintage turntables. Omega uses a standard elliptical diamond and is a very reliable cartridge with a characteristic for Ortofon accurate sound.
The Omega provides upgraded sound quality in a cost-effective package.
Ortofon OMEGA Technical data
Output voltage at 1000 Hz, 5cm/sec - 4 mV
Channel balance at 1 kHz - 2 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency response - 20-21.000 Hz
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1,5-2,0 g (15-20 mN)
Tracking force, recommended - 1,75 g (17,5 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistanc - 47 kOhm
Cartridge weight - 5 g (additional weight incl.)
