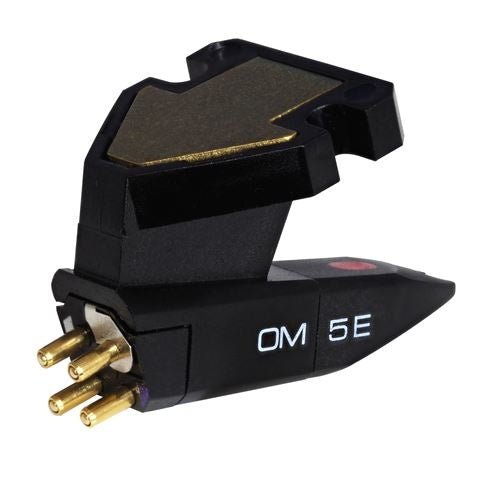

Ortofon - OM-5e Elliptical stylus listening cartridge
Output voltage at 1000 Hz, 5cm/sec. - 4 mV
Channel balance at 1 kHz - 2 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency response - 20-20.000 Hz + 3 / -3
Tracking ability at 315Hz at recommended tracking force *) - 60 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1.5-2.0 g (15-20 mN)
Tracking force, recommended - 1.75 g (17.5 mN)
Tracking angle - 20°
*) Typical value
Choose options
Ortofon - OM-5e Elliptical stylus listening cartridge
Sale price$90.00
Regular price
