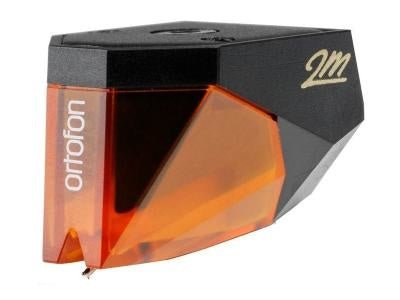

Ortofon 2M Bronze Moving Magnet Cartridge
| Specifications | |
|---|---|
| 2M PnP MkII cartridge with integrated headshell length | 52 mm |
| 2M PnP MkII cartridge with integrated headshell weight | 20 g |
| Cartridge weight | 7.2 g |
| Cartridge colour, body/stylus | Black/Bronze |
| Recommended load capacitance | 150-300 pF |
| Recommended load resistance | 47 kOhm |
| Internal inductance | 630 mH |
| Internal impedance, DC resistance | 1.2 kOhm |
| Tracking angle | 20° |
| Tracking force, recommended | 1.5 g (15 mN) |
| Tracking force range | 1.4-1.7 g (14-17 mN) |
| Stylus tip radius | r/R 8/40 µm |
| Stylus type | Nude Fine Line |
| Compliance, dynamic, lateral | 22 µm/mN |
| Tracking ability at 315Hz at recommended tracking force | 80 µm |
| Frequency response | 20-20.000 + 2 / - 0 dB |
| Frequency range at | 3dB - 20-29.000 Hz |
| Channel separation at | 15 kHz - 15 dB |
| Channel separation at | 1 kHz - 26 dB |
| Channel balance at | 1 kHz - 1 dB |
| Output voltage at | 1000 Hz, 5cm/sec. - 5 mV |
