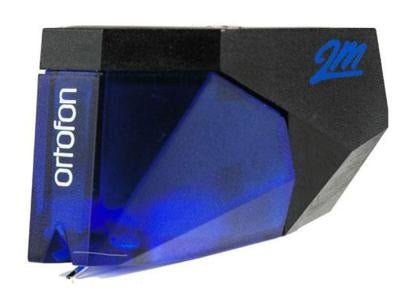

Ortofon - 2M Blue Nude Elliptical Diamond
| General | |
|---|---|
| Output voltage at 1000 Hz, 5cm/sec. | 5,5 mV |
| Channel balance at 1 kHz | 1,5 dB |
| Channel separation at 1 kHz | 25 dB |
| Channel separation at 15 kHz | 15 dB |
| Frequency range at - 3dB | 20-25.000 Hz |
| Frequency response | 20-20.000 Hz + 2 / - 1 dB |
| Tracking ability at 315Hz at recommended tracking force | 80 µm |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Nude Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Tracking force range | 1,6-2,0g (16-20 mN) |
| Tracking force, recommended | 1,8 g (18 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 1,3 kOhm |
| Internal inductance | 700 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 150-300 pF |
| Cartridge colour, body/stylus | Black/Blue |
| Cartridge weight | 7,2 g |
| Replacement stylus unit | 2M Blue (interchangeable with 2M Red) |
| Stylus protection guard | 2M Blue |
| Included |
|
