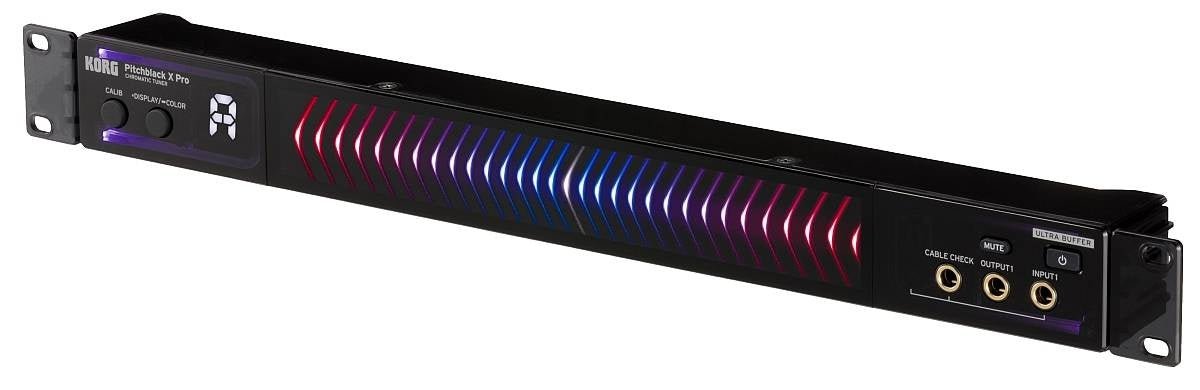

Korg - Pitchblack X Pro Rackmount Chromatic Tuner

Korg's new flagship rack-mounted tuner featuring the new ULTRA BUFFER is powerful and easy to use.

Features
• Allows switching between true bypass and the newly-developed ULTRA BUFFER
• A choice of multicoloured LEDs and bright mode settings for outstanding visibility
• Ultra-high tuning accuracy down to 0.1 cents
• Select from four types of meter display to match your requirements
• Built-in 'just-right tuning' display

Featuring the newly-developed ULTRA BUFFER
The Pitchblack X Pro not only features a true bypass for outputting the sound exactly as it was input, but now includes a built-in ULTRA BUFFER. Why is this important?

The majority of electric guitars use passive pickups with a high impedance output. When you are using a cable there is a loss of tone, usually high frequencies, after about 6 m (around 18 feet) and this problem gets worse the longer your cable. A buffer boosts the signal over long cables to avoid loss of tone, keeping it clean and clear - even when your pedal is off.

The ULTRA BUFFER enhances the sound quality in bypass mode, so that you can still maintain audio quality even when using a long cable to connect to the tuner, or when inserting the tuner into a complex effects board.

Designed for a wide range of setups
This tuner comes with easily detachable rack-mounting adapters. Aside from installing this tuner into a rack, you can attach the rack-mounting adapters onto the bottom of the unit, and use them as a stand for placing the unit on the floor.

Output jacks are available on both the rear and front panel, which makes it easier to integrate the tuner into your effects board.

An extremely useful cable checker function
By connecting a standard cable into INPUT 1 and CABLE CHECK jacks, you can use KORG's own special 'cable checker' function to see whether the cable is shorted out. This feature helps to confirm any potential problems and help prevent cable troubles onstage and in the studio.

Specifications
Scale: 12 note equal temperament

Detection Range: E0(20.60Hz)~C8(4,186Hz)
Calibration Range: A4=436〜445Hz（1Hz steps）
Detection Accuracy: +/- 0.1 cent (display mode: Strobe)

Input Impedance: 1 M-ohm (tuner on)

Display Modes: Regular, Strobe, Half-strobe, Focus
LED colour patterns: Blue and red gradation, green and red gradation, cyan, green, blue

Front Side Connectors:
INPUT 1 jack (1/4″/6.3 mm monaural phone jack)
OUTPUT 1 jack (1/4″/6.3 mm monaural phone jack)
CABLE CHECK jack (1/4″/6.3 mm monaural phone jack)

Rear Side Connectors:
INPUT 2 jack (1/4″/6.3 mm monaural phone jack)
OUTPUT 2 jack (1/4″/6.3 mm monaural phone jack)
DC 9V IN jack

Power Supply: AC adaptor (9V)
Power Consumption: Maximum 140 mA

Dimensions(W x D x H):
Tuner Only: 430 x 50 x 44 mm（including protrusions）
When used with the rackmount adapters: 482 50 44 mm（including protrusions）
Weight: 379 g

Included Accessories: Notices, AC adapter, Screw x 4, Washer x 4, Rack mounting adapter x 2
