K&K Sound - PowerMix Pure Mini XT

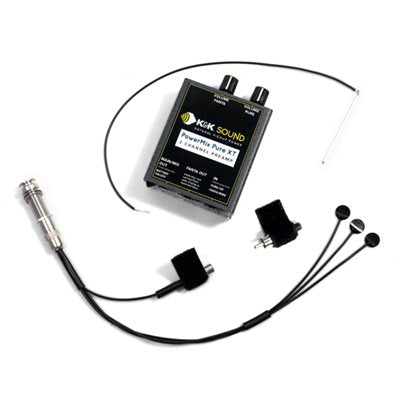

The PowerMix XT Preamp is a 2-channel, belt clip mixer that allows you to blend the two pickups of the PowerMix System. It features extremely low noise operation and can process high input peaks without distortion and offers an incredible dynamic range.

Aside from its strong bass, midrange, and treble filters (for each channel), it offers internal gain adjustments which set the pre amplification factor from 1 to 10 (per channel). This allows you to boost the input signal up to the 10-fold amount. It features two volume controls knobs, two 1/4" inputs, and a line level 1/4" output on the outside of the box. Inside the box, there are adjustable controls for gain, bass, midrange and treble for each channel. The tone controls offer an incredible +/- 20 dB. This is a wider range than some big boards on the market today!

To keep the box as small as possible these controls are trim pots (small potentiometers for adjustment with a precision screw driver which is supplied). Once you've installed the two pickups, you can adjust the trim pots to your personal taste and needs. During performance, the two volume knobs on the outside allow for fast balancing on the fly.

All parts of the system can be installed non-destructively without drilling any holes other than the endpin hole. The components are meticulously phase aligned.
