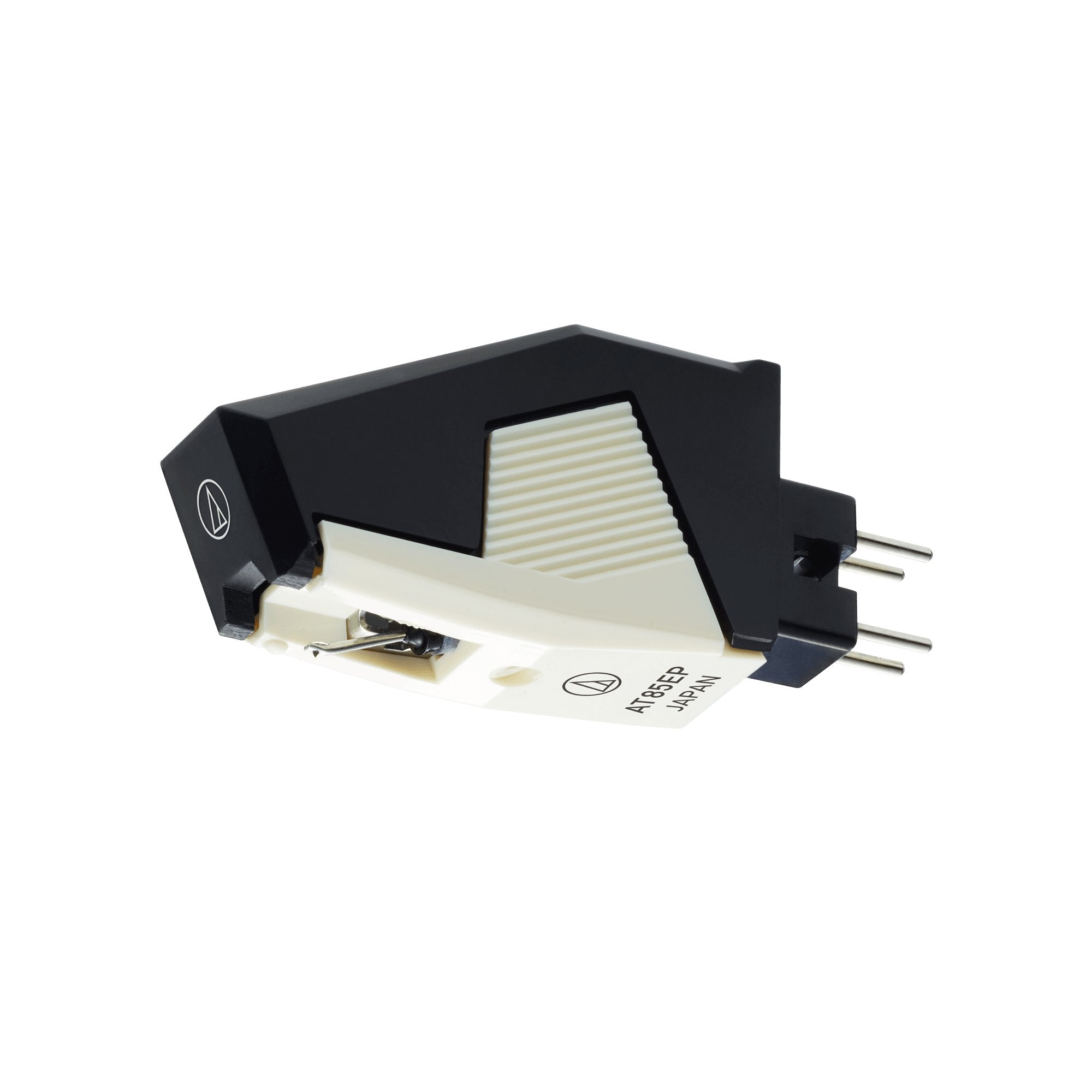

Audio-Technica AT85EP Dual moving magnet cartridge
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20-20,000 Hz |
| Channel Separation | 20 (dB at 1 kHz) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 1.0-1.5 g (1.25 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 2.8 k ohms (1 kHz) |
| DC Resistance | 410 ohms |
| Coil Inductance | 400 mH (1 kHz) |
| Output Voltage | 3.5 mV (1 kHz, 5 cm/sec.) |
| Output Channel Balance | 2.0 dB (1 kHz) |
| Stylus Shape | 0.3 x 0.7 mil elliptical |
| Cantilever | Aluminum pipe |
| Mounting | P-mount |
| Dimensions | 15.3 mm (0.60') H × 10.0 mm (0.39') W × 35.1 mm (1.38') D |
| Mounting Feature | P-mount |
| Recommended Load Capacitance | 100 to 200 pF |
| Replacement Stylus | ATN85EP |
| Stylus Size | 0.3 x 0.7 mil |
| Type | Dual Magnet |
| Weight | 6.0 g (0.21 oz) |
Audio-Technica AT85EP Dual moving magnet cartridge
Sale price$59.00
