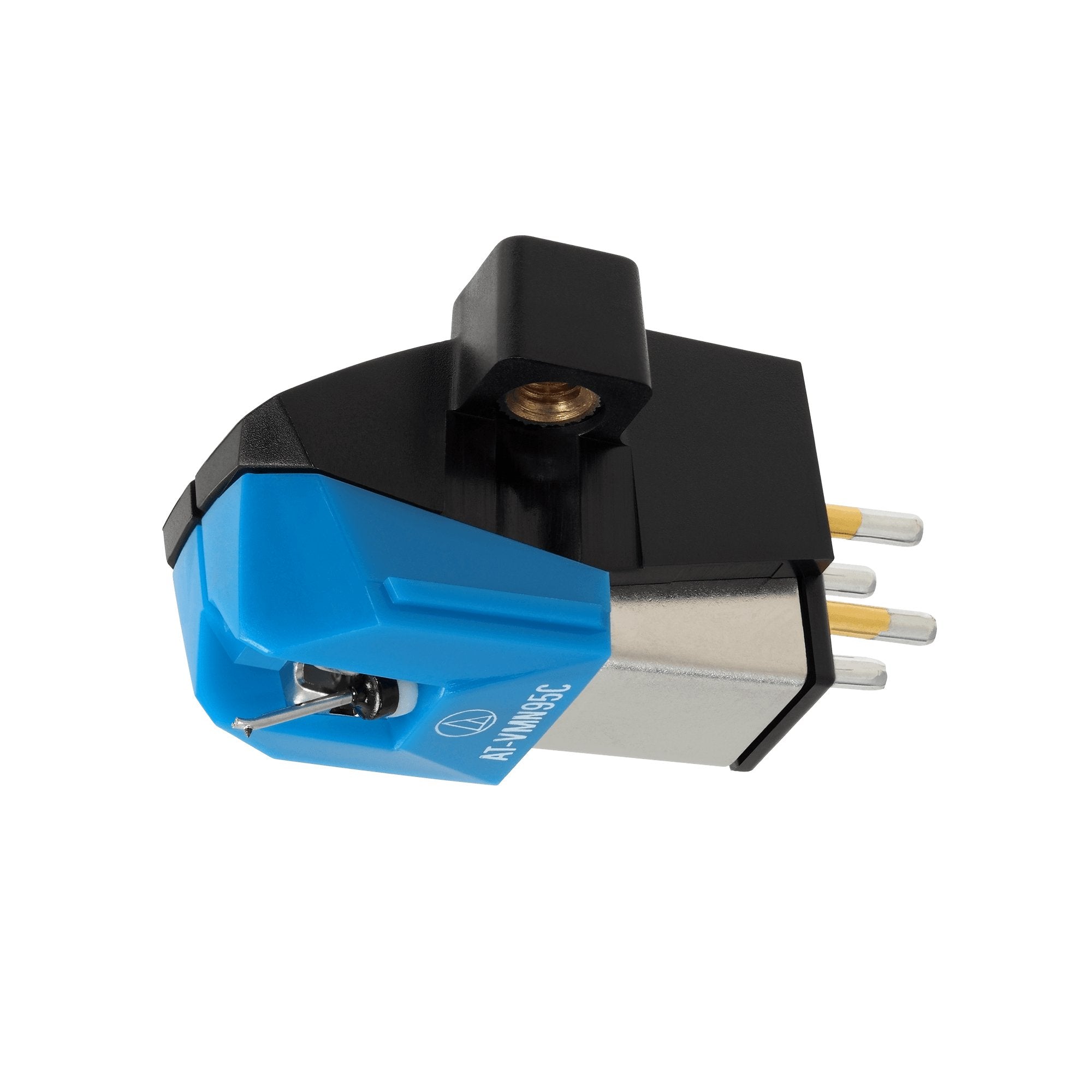

Audio-Technica AT-VM95C Dual Moving magnet cartridge
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20-20,000 Hz |
| Channel Separation | 18 (dB at 1 kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8-2.2 g (2.0 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 3.3 k ohms (1 kHz) |
| DC Resistance | 485 ohms |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 4.0 mV (1 kHz, 5 cm/sec.) |
| Output Channel Balance | 2.5 dB (1 kHz) |
| Stylus Shape | 0.6 mil conical |
| Cantilever | Aluminum pipe |
| Static Compliance | 17 x 10 – 6 cm / dyne |
| Dynamic Compliance | 6.5 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | Half-inch |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 mm (0.68') H × 18.9 mm (0.74') W × 28.3 mm (1.20') D |
| Accessories Included | Two 11 mm installation screws, two 8 mm installation screws, two washers |
| Model | AT-VM95C |
| Mounting Feature | Half-inch mount |
| Recommended Load Capacitance | 100 to 200 pF |
| Replacement Stylus | AT-VMN95C |
| Stylus Size | 0.6 mil |
| Type | VM Stereo Dual Magnet |
| Weight | 6.1 g (0.22 oz) |
| Wire Used for Coil | T.P. Copper |
