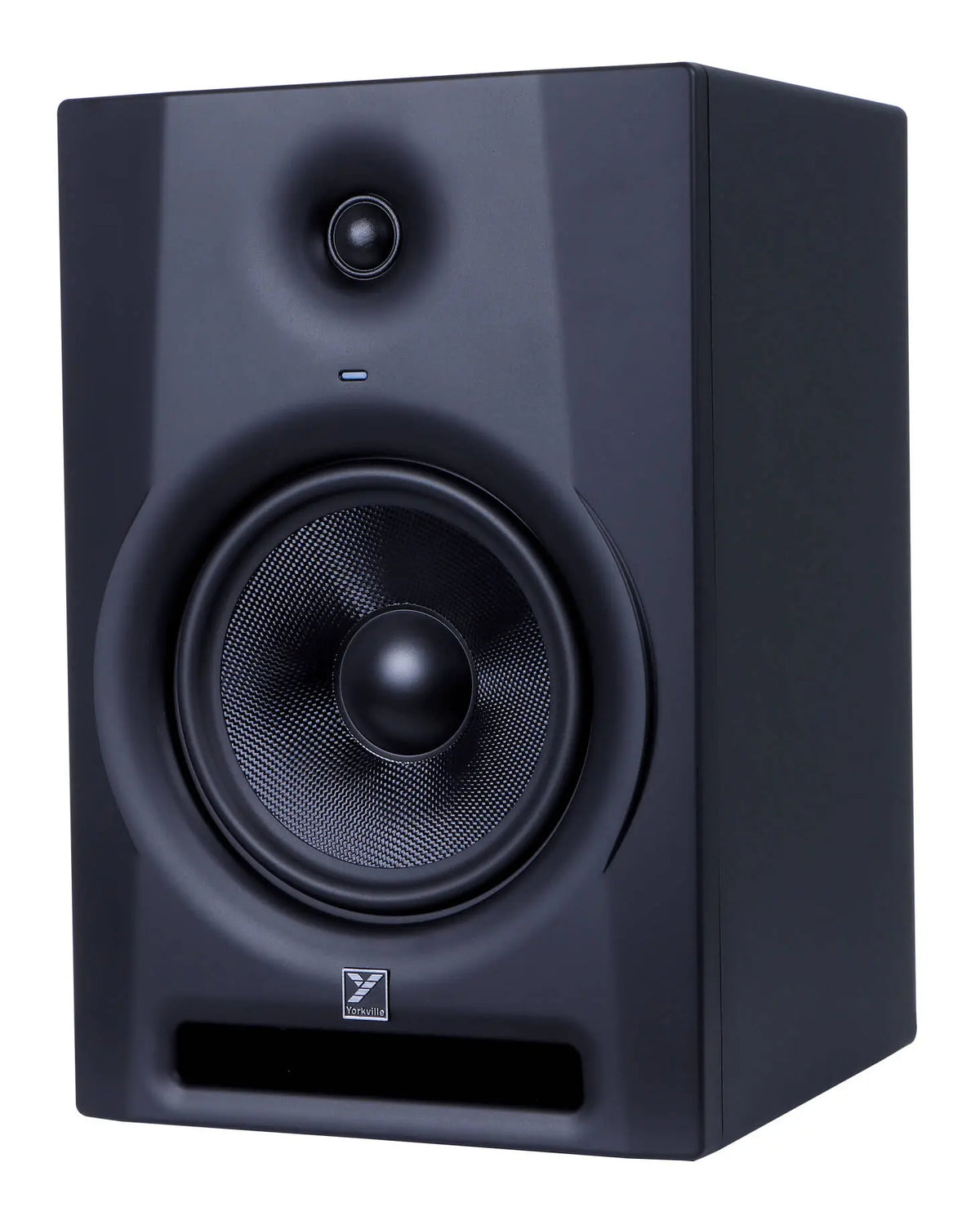

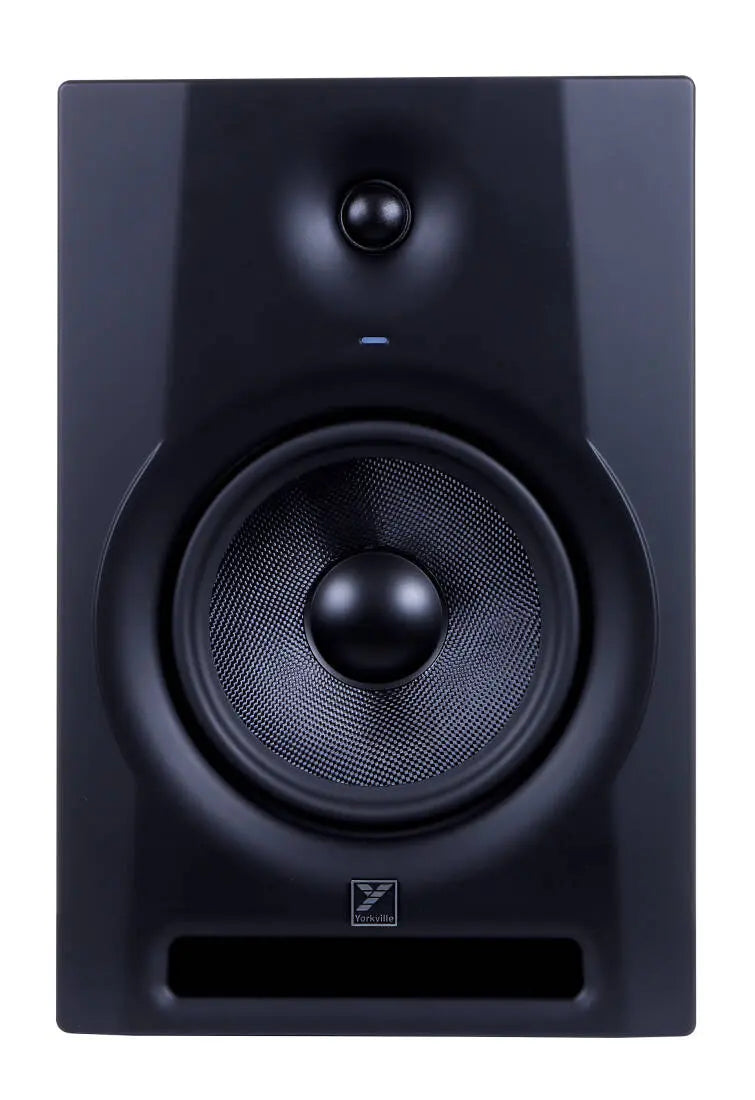

Yorkville - YSM8 Series 2 100 Watt Powered Studio Monitor - 8'' (Pair) -USED-

Yorkville Sounds YSM SERIES II Powered Studio Monitors are engineered to deliver the uncompromising clarity your mixes demand. Designed with project and professional studios in mind, the YSM SERIES II has been developed to be the best-sounding monitor in its class.

The YSM8-2 features 1-inch black-silk diaphragm neodymium dome tweeters. These tweeters blend seamlessly into the specially designed low-diffraction waveguide which is integrated into the front baffle. The edges of the wave-guide perfectly couple the tweeter with the woofer, reducing sonic anomalies normally associated with driver/tweeter proximity. The fibre-reinforced composite cone woofers have also been designed to perform with sonic excellence, providing a wide dynamic range at all levels. Integrated DSP is utilised to deliver transparent signal processing and bi-amplification has been optimised for each driver. The woofer and tweeter have been perfectly time aligned to eliminate any phase irregularities usually associated with 2-way designs.

Features
• 8-inch low frequency driver; 1-inch silk dome tweeter

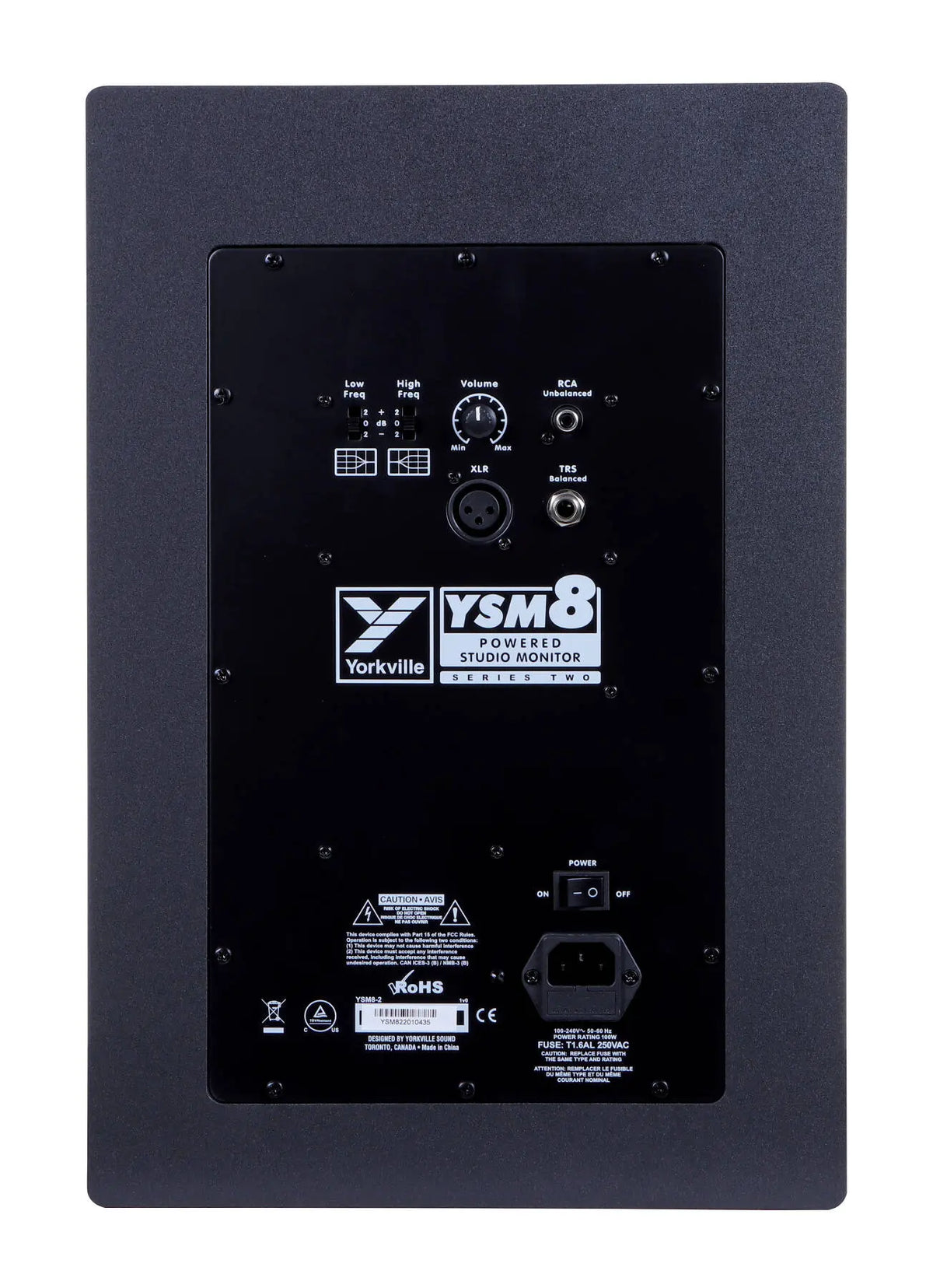

• Balanced XLR and 1/4- inch TRS inputs
• Unbalanced RCA input
• High and Low Frequency Adjust Controls
• Built in HF and LF limiters
• Volume Control

Specifications
Active or Passive: Active
Power (watts): 100
Biamp / Configuration: Yes-Two Way
Max SPL (dB): 105
Frequency Response: (Hz +/- 3dB)40Hz-22kHz
Crossover Frequency: (Hz)2.1 kHz
HF Driver(s): Neo Soft dome
HF Program Power (watts)25
LF Program Power (watts)75
Power Cable included
Power Switch: Back, with LED on Baffle
Power Consumption (typ/max): 60W
Inputs - 1/4-inch Jacks1
Inputs - XLR1
Inputs RCA1
Level Controls: 1
EQ Controls: 2
LED Indicators: Power on front
Enclosure Materials: mdf
Baffle Material: MDF/ABS
Covering / Finish: Textured Vinyl
Dimensions: 10.8 x 10.25 x 16.5" (27.43 x 26.04 x 41.91 cm)
Weight: 21 lbs (9.5 kg)
