Power In | 9/12VDC (negative TIP) |
Consumption at 9V | 140 mA |
Input Impedance | <=1M Ohm |
OutputImpedance | <=10K Ohm |
Lenght | 90mm. (3,5”) |
Width | 127mm. (5”) |
Height | 30mm. (1,2”) |
Rohs Compliance | Yes |
Power Supply | Not Included |

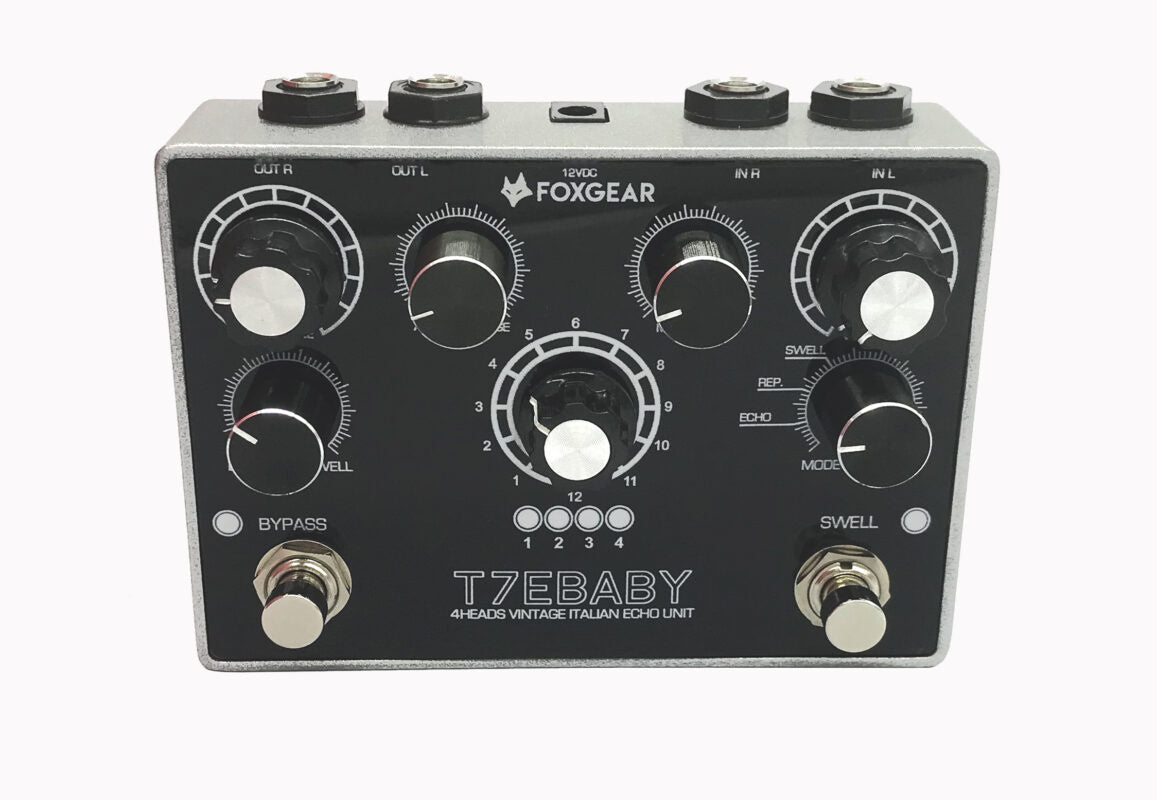

Foxgear T7E Baby 4 Heads Stereo Vintage Italian Echo
Size: the new FOXGEAR T7E Baby enclosure makes it one of most pedal board-friendly of the “Binson-inspired” pedals: only 3,5” x 5”!! ( 9 x 13cm.)
Connections: the FOXGEAR T7E Baby is equipped with full Stereo Input &output, and an internal stereo engine that works on a phase and split-frequency resulting in an unbelievable stereo 3D effect for an outstanding and lush ambient tone.
Switching: Now available with 2 footswitches handling bypass, that is a real True Bypass assisted by relay, that lets you put it at the end of your chain between stereo pedals, and a very useful SWELL footswitch, to immediately recall the swell mode (reverb) in order to have two different presets for your ambient/echo tone.

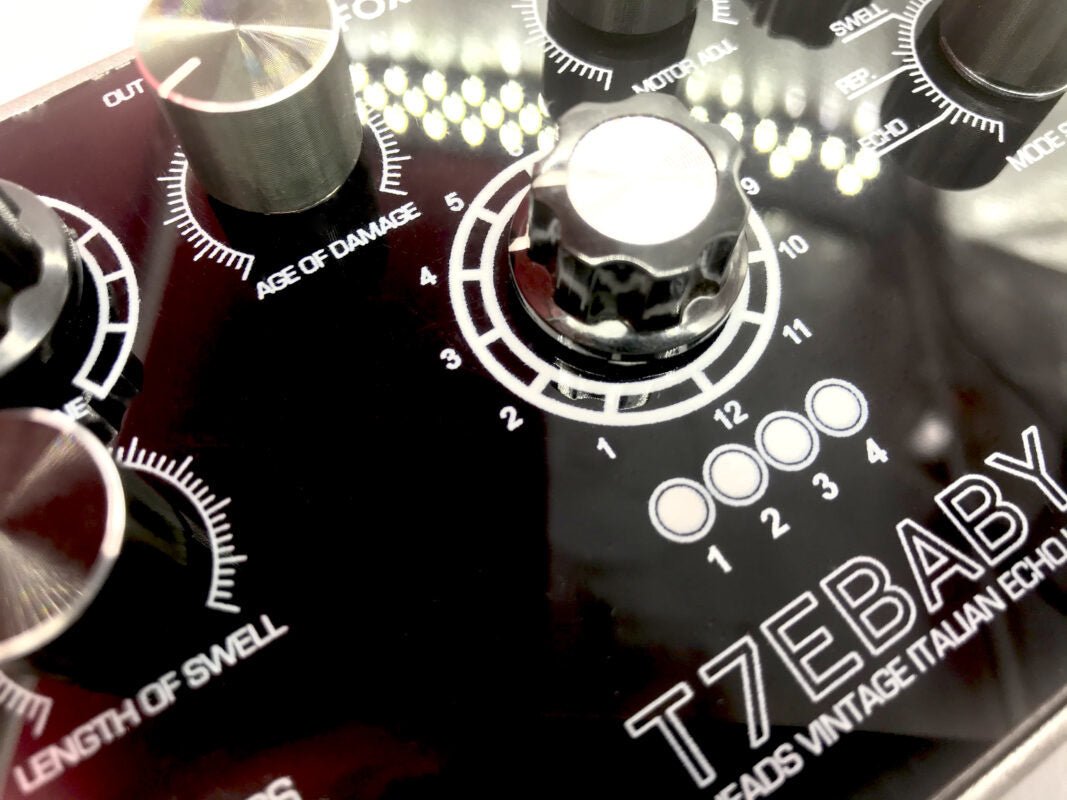

Motor Speed adjust: along with the other cool features of the old Echosex Baby, we’ve added this control, that let you increase the overall delay time, you can mimic a slowered speed of the magnetic drum. This allows the FOXGEAR T7EBaby over 800ms of long, lush delay, keeping the 4 heads in sync, no matter what combination of head you are using.
