PARAM |
VALUE |
---|---|
Power In | 9 to 12VDC (negative TIP) |
Consumption at 9V | <100mA |
Input Impedance | <=1M Ohm |
Output Impedance | <=10K Ohm |
Width | 60mm. (2,3”) |
Length | 120mm. (4,7”) |
Height | 30mm. (1,1”) |
Weight | 0,2Kg. (0,4lbs) |
RAINBOW USERMANUAL.pdf Open | Download |
233.79 KB |
Smart dimensions:
The pedals from the Foxgear Professional Compact series measure only 2,3” x 4,7” x 1,1”, and thanks to their top mounted jacks, they can easily fit in any pedalboard. Compared to other manufacturer’s lesser-quality, side-jack mounted micro-pedals, you can fit 4 Foxgear pedals in the same space normally needed for 3 of the other manufacturer’s micro-pedals.
Quality:
Foxgear pedals are constructed with non-SMD components in the audio path, with analog design, and high-quality components like Wima capacitors, real Alpha 16mm pots, non-plastic trimmers, and a true bypass circuit that includes Panasonic golden pin relays. That’s why all Foxgear pedals are covered with a full 5 Year warranty!!

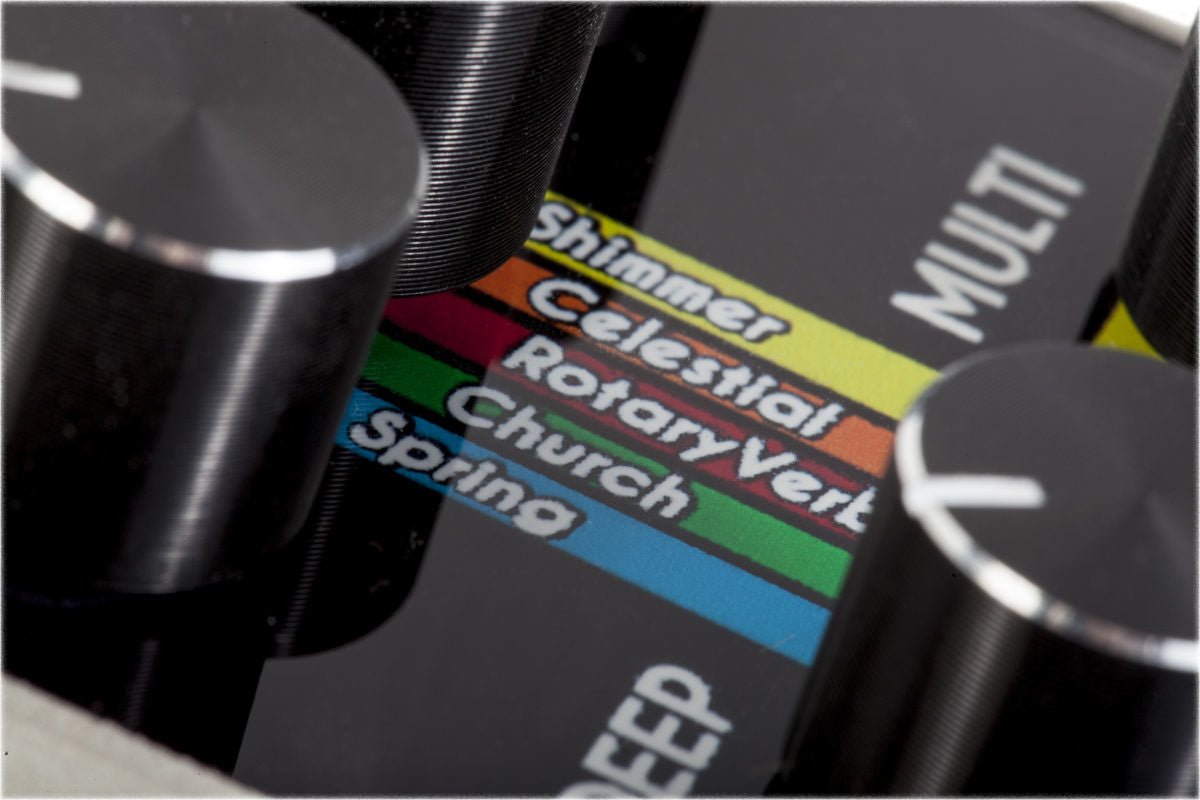

Shimmer:
The Shimmer effect is a well-known kind of reverb tail that mimics the sound of strings or organ that rise up behind your notes and follows the harmony of the chords you are playing for an outstanding result.
Celestial:
more shimmer! High pitched and different frequency harmonics mimic a more effective organ/string carpet, organic, dynamic and touch responsive, so creative! (Deep Control changes the frequency used for the shimmer effect)
Rotary Verb:
imagine placing an old rotary speaker in the middle of the empty Panthenon in Rome. With the Multi control you can change the lFO rate to increase or decrease the modulation.
Church:
one of the coolest reverb effects, uses the Deep control to move from your local church to a larger Gothic Chathedral.
Spring:
emulate an analog spring reverb allowing you chose the length with Deep control, and Lo- cut filtering with the Multi control.
