Audio-Technica - Headshell/Cartridge Combo Kit AT-XP3/H

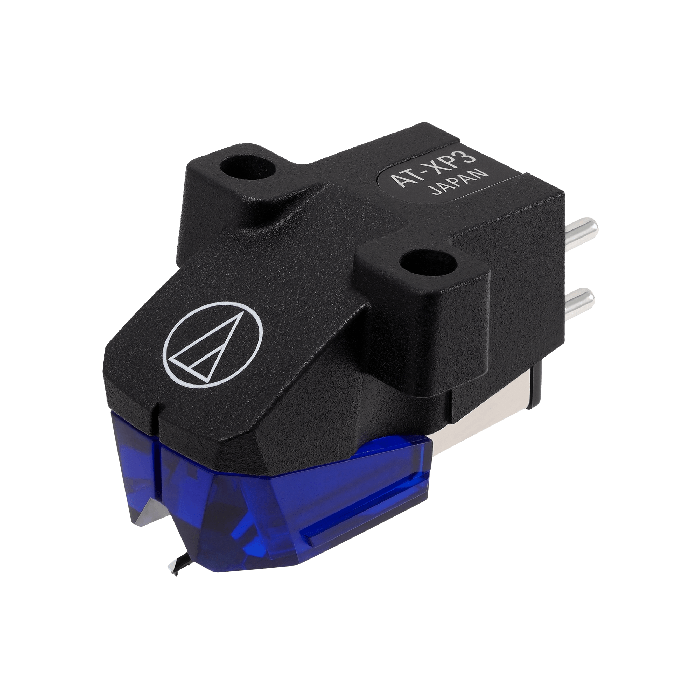

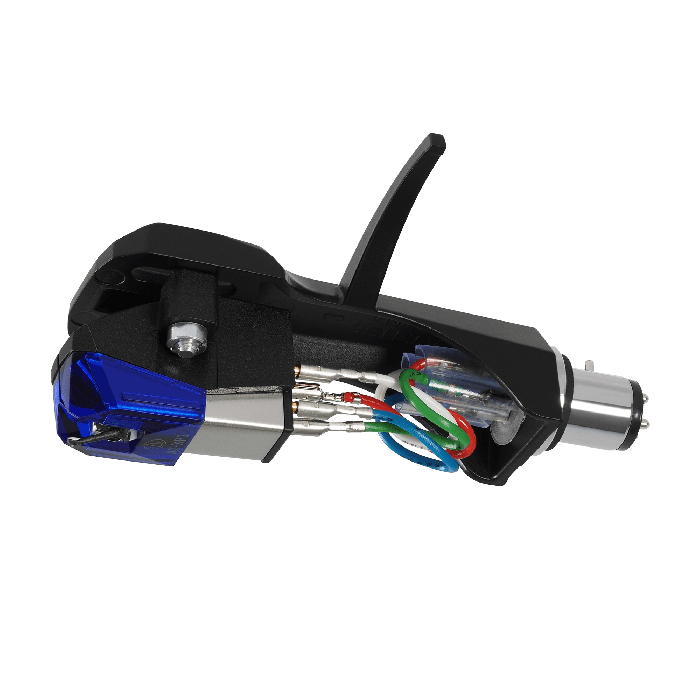

The AT-XP3/H combo kit includes the AT-XP3 DJ cartridge premounted on the AT-HS6BK headshell.

• 0.6 mil conical bonded stylus tip
• Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
• 5.5 mV high-level output
• Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
• Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
• Design offers maximum visibility of the stylus tip
• Great tracking and channel separation for high-fidelity sound
• AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application
• Universal ½"-mount headshell for 4-pin turntable cartridges

Cartridge & Stylus
Frequency Response	20-18,000 Hz
Channel Separation	20 (dB at 1 kHz)
Vertical Tracking Angle	20°
Vertical Tracking Force	2.0-4.0 g (3.0 g standard)
Stylus Construction	Bonded round shank
Recommended Load Impedance	47,000 ohms
Coil Impedance	6.7 k ohms (1 kHz)
Coil Inductance	1 H (1 kHz)
Output Voltage	5.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance	2.0 dB (1 kHz)
Stylus Shape	0.6 mil conical
Cantilever	Carbon fiber-reinforced ABS
Static Compliance	20 x 10 – 6 cm / dyne
Dynamic Compliance	6.0 x 10 – 6 cm / dyne (100 Hz)
Mounting	Half-inch
Cartridge Weight	15.6g
Dimensions	cartridge 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D; cartridge and headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
Accessories Included	Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
Model	AT-XP3/H
Mounting Feature	Half-inch mount
Recommended Load Capacitance	100 to 200 pF
Replacement Stylus	ATN-XP3
Stylus Size	0.6 mil
Weight	cartridge 6.2 g (0.22 oz); cartridge and headshell 15.6 g (0.55 oz)
